Crushing pliers
Data：2021-05-10 16:45
Author：adminvip
Click：次
Product introduction

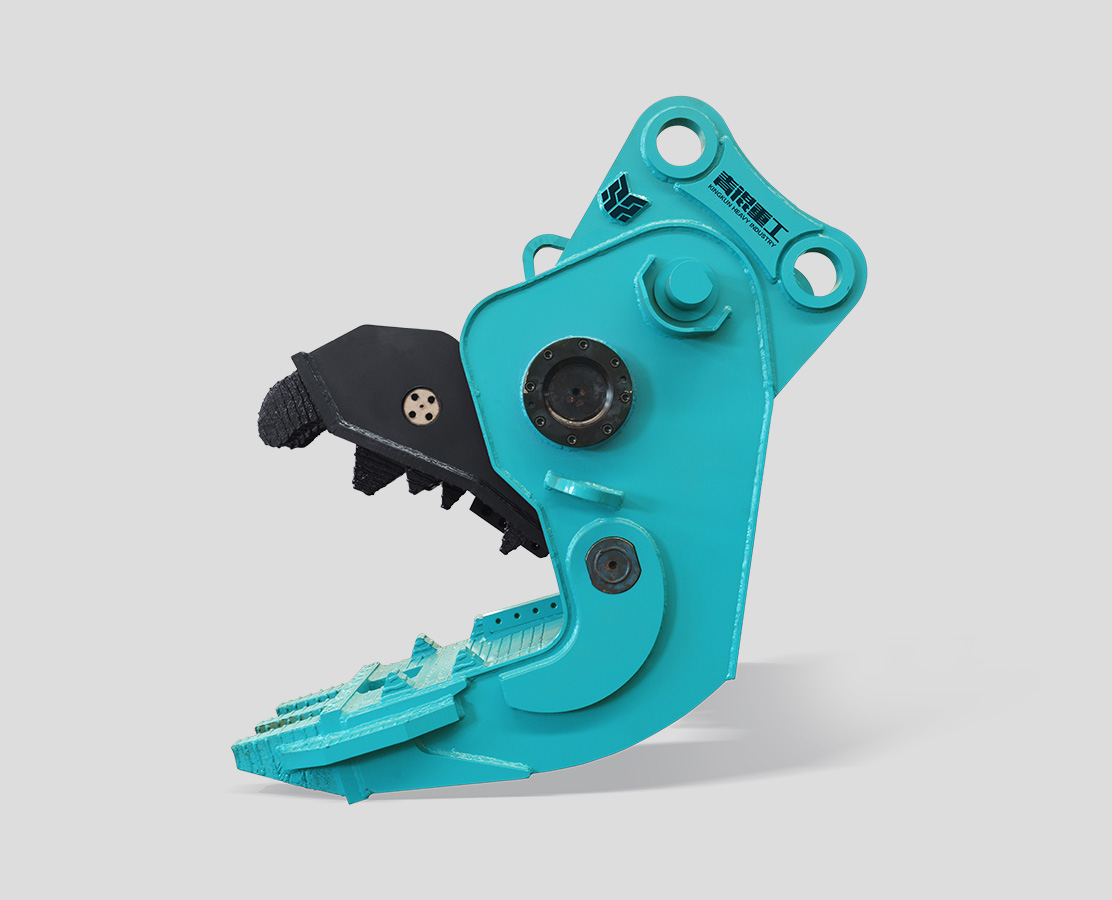

The crushing tongs are installed on the excavator, using the excavator as the power to combine the movable tongs of the hydraulic crushing fixture and the fixed tongs to achieve the effect of crushing the concrete, so that the steel bars in the concrete can be recycled. It consists of a clamp body, a hydraulic cylinder, a movable jaw and a fixed clamp. The fixture body is composed of helical teeth, blades and ordinary teeth. The crusher is installed on the excavator and belongs to the excavator.
Has been used in the demolition industry. In the demolition process, it is installed on the excavator and can be operated by only one excavator operator.
Product features
Product features
◆It is welded by wear-resistant steel, with reasonable structure, high strength and no deformation.
◆The machine operation is simple, sensitive, high production efficiency, and low energy consumption.
◆The hydraulic pulverizer consists of a tong body, a hydraulic cylinder, a movable jaw and a fixed jaw, which are installed on the excavator. The external hydraulic system provides power for the expansion and contraction of the hydraulic cylinder, and controls the opening and closing of the movable jaws of the crushing tongs to achieve the effect of crushing objects.
◆Hydraulic crushing tongs are now used in the demolition industry to smash concrete and cut steel bars.
Technical parameter
Technical parameter
| 项目 | Unit | QK-06 | QK-08 | QK-10 |
|---|---|---|---|---|
|
Applicable excavator
|
ton | 12-18 | 18-25 | 26-35 |
|
Weight
|
kg | 900 | 1850 | 2100 |
| Opening | mm | 570 | 850 | 910 |
| Blade length | mm | 130 | 200 | 230 |
| Height | mm | 1520 | 2320 | 2420 |
| Width | mm | 600 | 700 | 800 |
| Crushing force | ton | 65 | 95 | 120 |
| Preset pressure | bar | 280 | 300 | 320 |
| Limited Data | lpm | 180-200 | 220-260 | 220-280 |
| Work pressure | bar | 260 | 280 | 300 |
