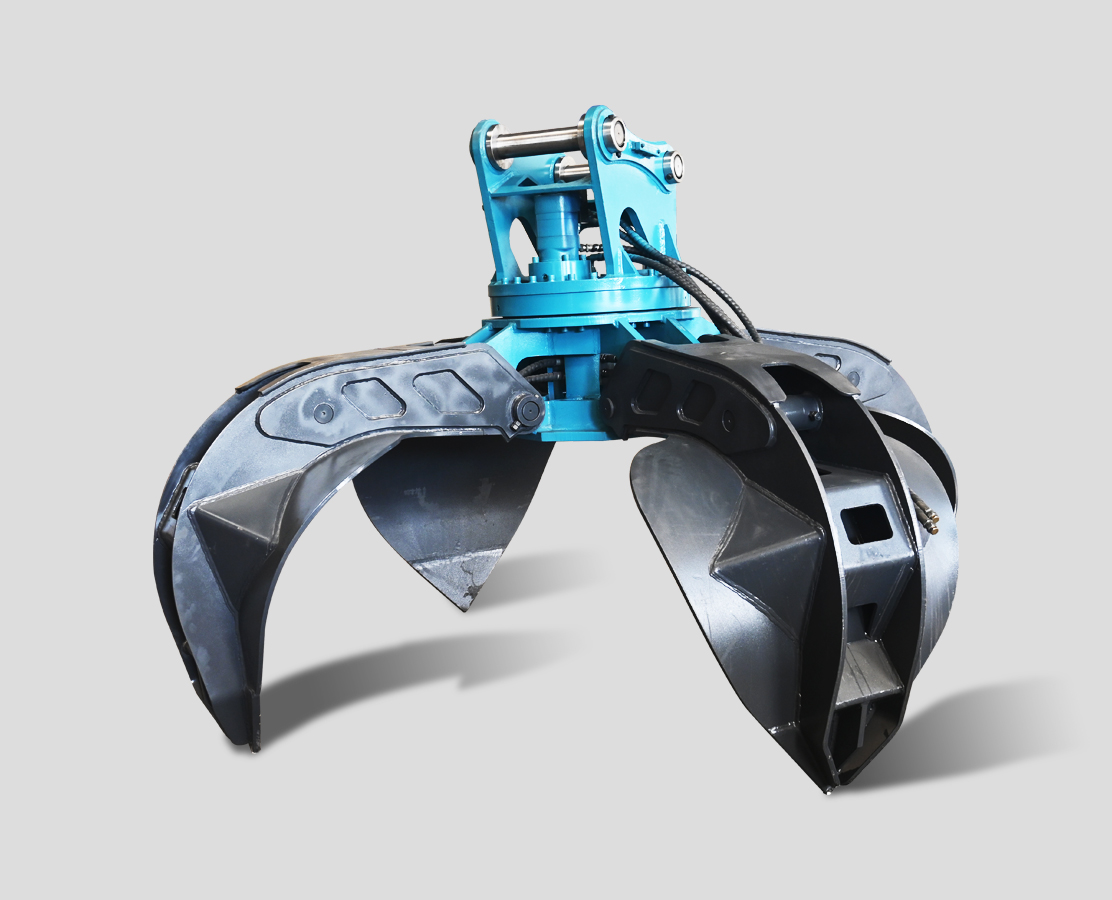

Rotating lotus grab
Data：2021-05-09 11:51
Author：adminvip
Click：次
Product introduction
The lotus steel grabbing machine is especially suitable for large and medium-sized excavators and other load-bearing equipment to carry out bulk waste, waste loading and unloading and handling.
The number of flap shells is optional: according to the different needs of customers, you can choose a three flap grab, a four flap grab or a five flap grab; the flap shell type is optional: according to the different objects to be grasped, a full closure is optional Type valve shell, semi-closed valve shell, broad-sided valve shell or narrow-sided valve shell.
Product features
Product features
◆ Qingkun series lotus grips are made of special steel, light in texture and high in wear resistance.
◆ Maximum gripping force at the same level, maximum opening width, minimum weight and maximum performance.
◆ The high-pressure hose of the oil cylinder is built-in to protect the hose.
◆ The oil cylinder is equipped with a cushion pad which has the function of damping.
Technical parameter
Technical parameter
| 项目 | Unit | QK-04 | QK-06 | QK-08 | QK-10 |
|---|---|---|---|---|---|
| Weight | kg | 600 | 1200 | 1560 | 1800 |
| Maximum opening | mm | 1600 | 1800 | 2000 | 2500 |
| Closed height | mm | 1440 | 1540 | 1650 | 1860 |
| Maximum flow | lpm | 260 | 260 | 260 | 260 |
| Capacity | litre | 400 | 600 | 800 | 1000 |
| Number of petals | piece | 4-5 | 4-5 | 4-5 | 4-5 |
| Applicable excavator | ton | 5-11 | 12-18 | 18-25 | 26-35 |
