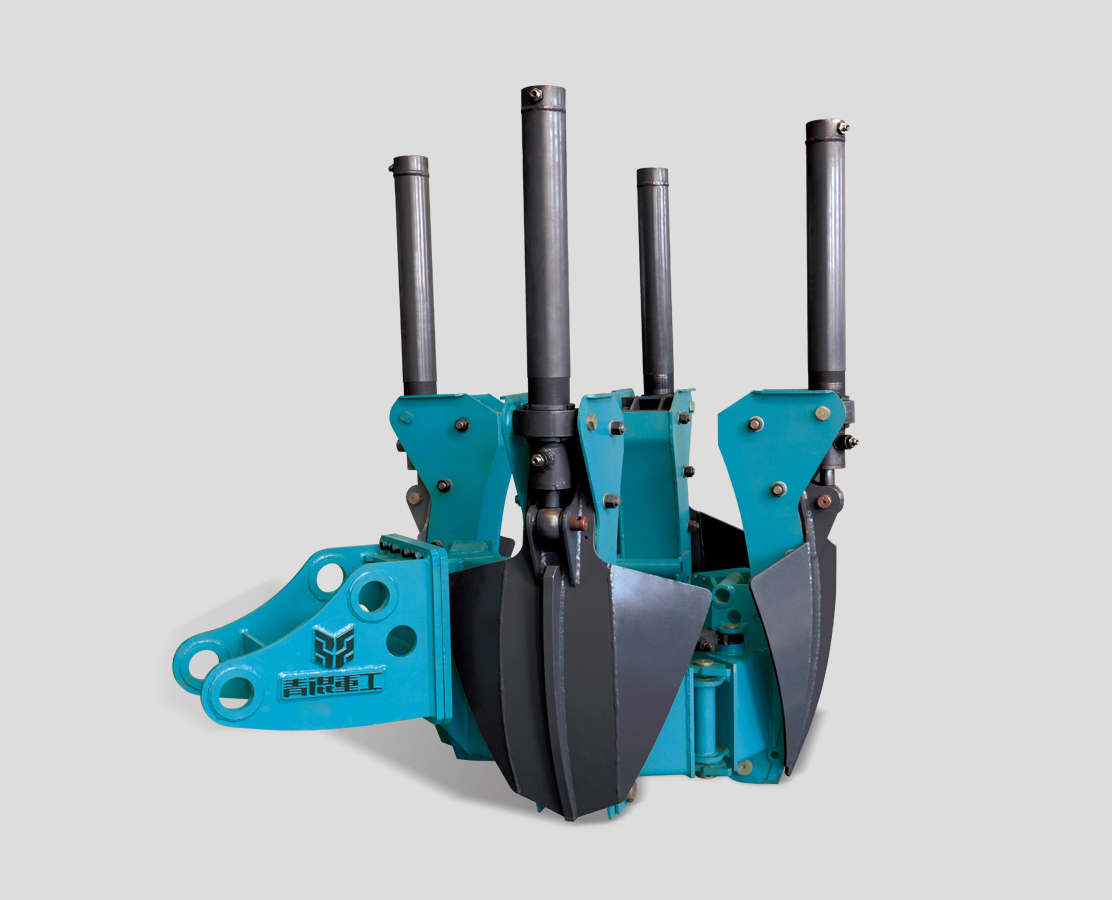

Tree mover
Data：2021-05-10 16:53
Author：adminvip
Click：次
Product features
◆Cut the root of the tree with a shovel and make the cut smooth, which greatly increases the survival rate of the tree.
◆High working efficiency. From shoveling down to digging out the tree. A tree in 1-3 minutes.
◆The excavated soil ball resembles an "apple shape", and the soil ball is full and can retain more roots to a greater extent.
◆The blades are all made of imported high-strength wear-resistant alloy plates. After testing: the blade is continuously bent 140 degrees with external force, and the continuous operation is 100,000 times. The original process state can be restored by releasing the external force.
Technical parameter
Technical parameter
| Project | Unit | QK-04 | QK-06 | QK-08 | QK-10 |
|---|---|---|---|---|---|
| Earth ball diameter-A1 | mm | Φ400 | Φ600 | Φ800 | Φ1000 |
| Earth ball diameter-A2 | mm | Φ200 | Φ300 | Φ400 | Φ500 |
| Tree ball depth B | mm | 380 | 450 | 600 | 600 |
| Shovel (piece) | piece | 4 | 4 | 4 | 4 |
| Unladen weight | kg | 530 | 830 | 1050 | 1100 |
| Spherical volume | m³ | 0.03 | 0.1 | 0.24 | 0.32 |
