Wood grab
Data：2021-05-09 14:08
Author：admin
Click：次

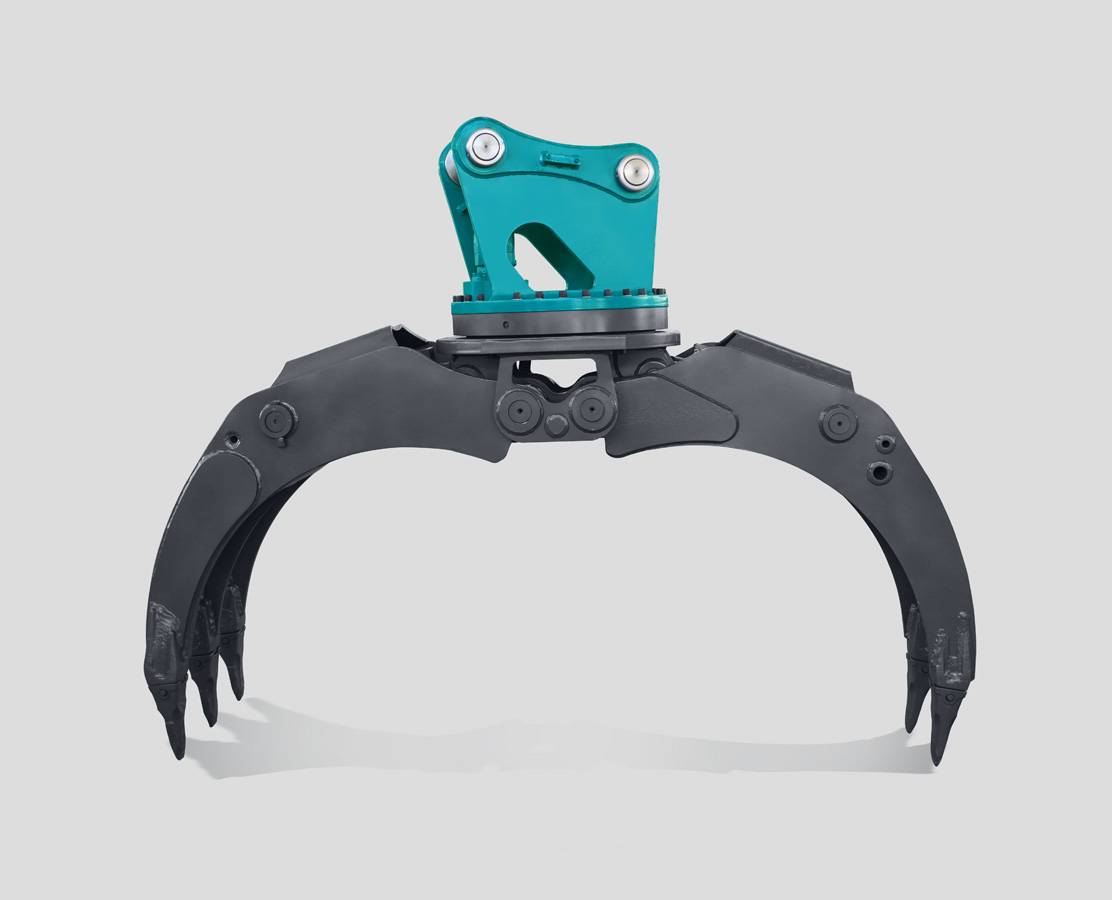

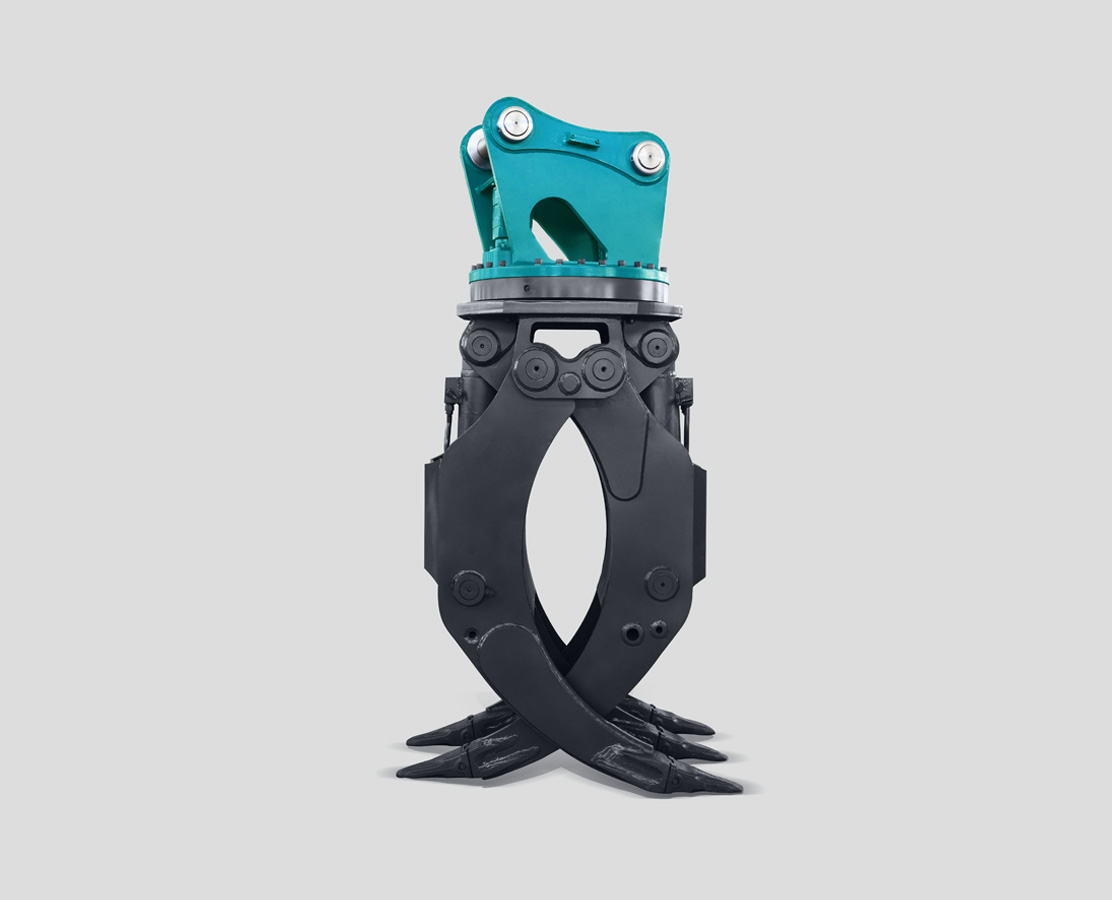

Wood grabbing, as its name suggests, is a machine for grabbing wood. It usually evolved from a hydraulic excavator. The size of the wood grabber is often referred to as the “grab arm”. It is generally long, and its shape and structure are different from those of ordinary excavators. The front end is a wood grabber whose main function is to carry out wood, wood, reed, straw, etc. Strip handling and handling operations.
Features
◆ Strong engine power, relatively long working arm, reasonable grab weight and wide operating range;
◆ The hydraulic system and mechanical structure of the whole machine are basically common to the market, and the maintenance is relatively convenient;
◆ Multi-functional properties can assume multiple operating modes;
◆ Excavation, earthwork, crushing, rotary excavation, grabbing, assembly, etc., can achieve a variety of work effects when replacing different parts;
◆ The body is more flexible, 360-degree body rotation, the grip is 360-degree rotation, and the working arm is longer, which can better expand the working range.
Purchase phone: 0536-3279668
Technical Parameters
| Item | Unit | QK-02 | QK-04 | QK-06 | QK-08 | QK-10 | QK-17 |
|---|---|---|---|---|---|---|---|
| Chuck size | mm | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 |
| Work pressure | kg/cm² | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 |
| Necessary flow | lpm | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
| Cylinder accumulation | ton | 4.0*2 | 4.5*2 | 8.0*2 | 9.7*2 | 12*2 | 12*2 |
| Weight | kg | 320 | 390 | 740 | 1380 | 1700 | 1900 |
| Excavator weight | ton | 4-6 | 7-11 | 12-18 | 17-23 | 24-30 | 31-40 |
